Description

Trina Vertex N 590-620W N-Type i-TOPCon Bifacial Module

The Trina TSM-NEG19RC.20 is an n-type i-TOPCon bifacial dual-glass module offered from 590 W to 620 W. Its 132-cell layout, 22.8% top-of-range efficiency and 33.7 kg weight make it a practical choice for commercial rooftops, ground-mount plants and carports, while dual-glass construction adds durability in hot, humid and coastal environments.

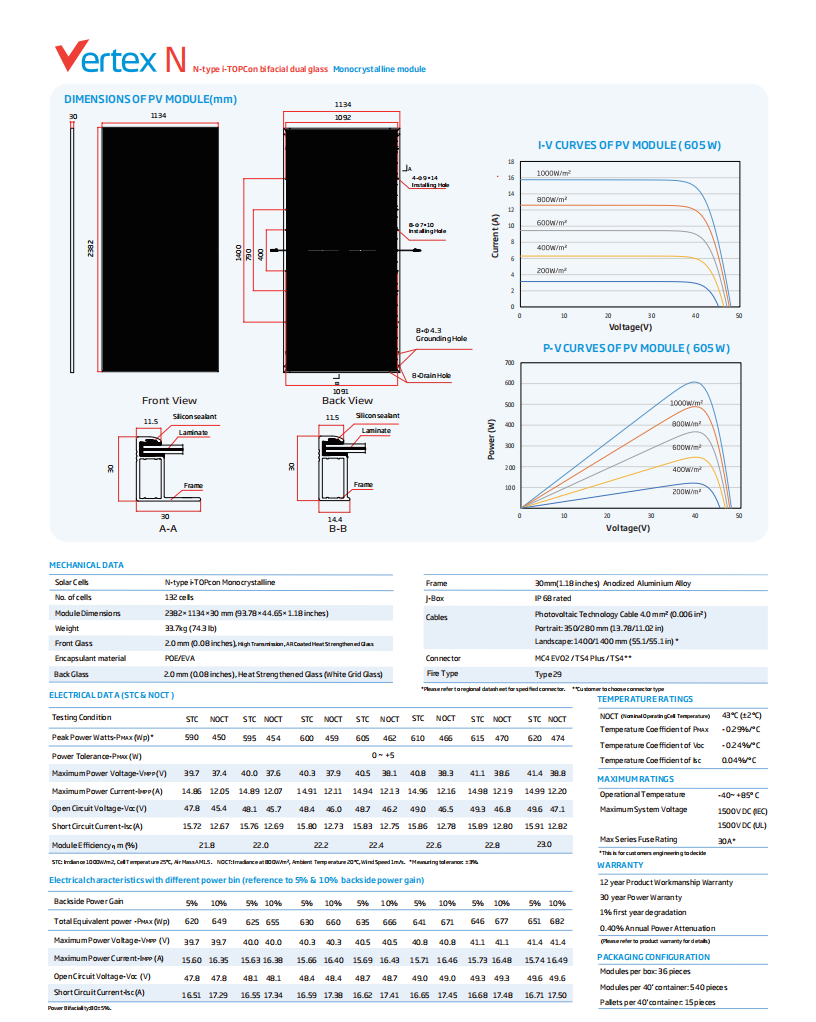

Key specifications (620 W)

Model	Trina Vertex N TSM-NEG19RC.20
Power range	590-620 W
Rated maximum power	620 W
Power tolerance	0 ~ +5 W
Module efficiency	22.8%
Maximum power voltage (Vmp)	41.4 V
Maximum power current (Imp)	14.99 A
Open circuit voltage (Voc)	49.3 V
Short circuit current (Isc)	15.89 A
Cells	132 n-type i-TOPCon monocrystalline
Dimensions	2382 x 1134 x 30 mm
Weight	33.7 kg
Glass	2.0 mm AR-coated front / 2.0 mm heat-strengthened back
Frame	30 mm anodized aluminium alloy
Junction box	IP68
Connector	MC4 EVO2 / TS4 PLUS / TS4
Maximum system voltage	1500 V DC (IEC)
Maximum series fuse	30 A
Operating temperature	-40 to +85 C
NOCT	43 +/- 2 C
Pmax temperature coefficient	-0.29%/C

Typical applications

Commercial and industrial rooftops
Ground-mount plants and carports
Coastal and high-humidity sites
Agri-PV and other bifacial installations

Supply, MOQ and delivery

Modules are supplied factory-direct from our Shanghai warehouse. Minimum order quantity, container loading plan and lead time are confirmed per order based on destination port and required volume, and mixed-wattage containers can be arranged on request. Each shipment includes the datasheet, IEC certificates and packing list.

Certifications

IEC 61215, IEC 61730; ISO 9001:2015, ISO 14001:2015, ISO 45001:2018.

FAQ

Which wattages are available?
The TSM-NEG19RC.20 platform runs from 590 W to 620 W in 5 W steps; all bins share the same 2382 x 1134 mm dimensions.

Is it bifacial?
Yes, it uses dual-glass construction and generates additional power from the rear side depending on albedo.

Do you provide warranty documents?
Yes, the product and power warranty terms are included in the datasheet pack available on request.

Request a quote for the Trina 590-620W module or browse the Trina solar panel range.
