Description

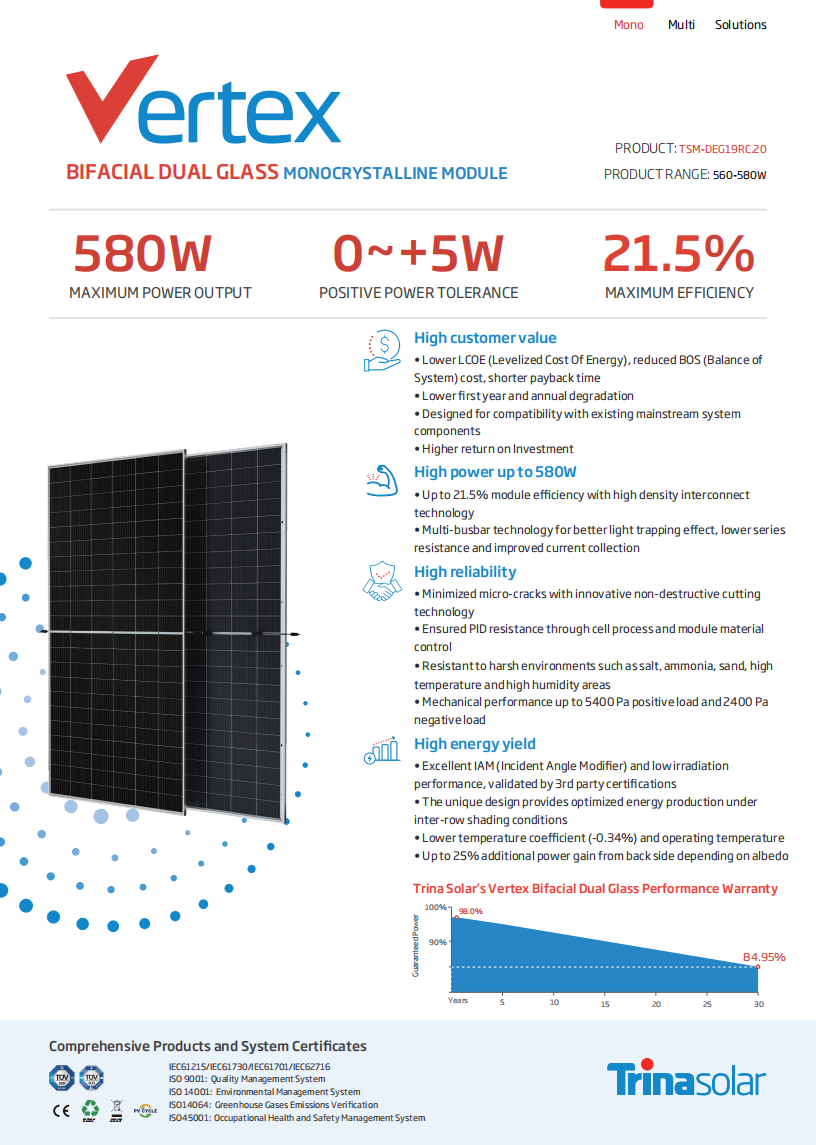

Trina Vertex 560-580W Bifacial Dual-Glass Module

The Trina TSM-DEG19RC.20 is a bifacial dual-glass module offered in a 560-580 W power range on a 132-cell monocrystalline platform. At 21.5% module efficiency and 33.7 kg, it sits in the mainstream commercial segment and suits factory rooftops, ground-mount plants and carports. Dual-glass construction improves durability in hot and humid climates, and the transparent rear side adds yield on high-albedo surfaces.

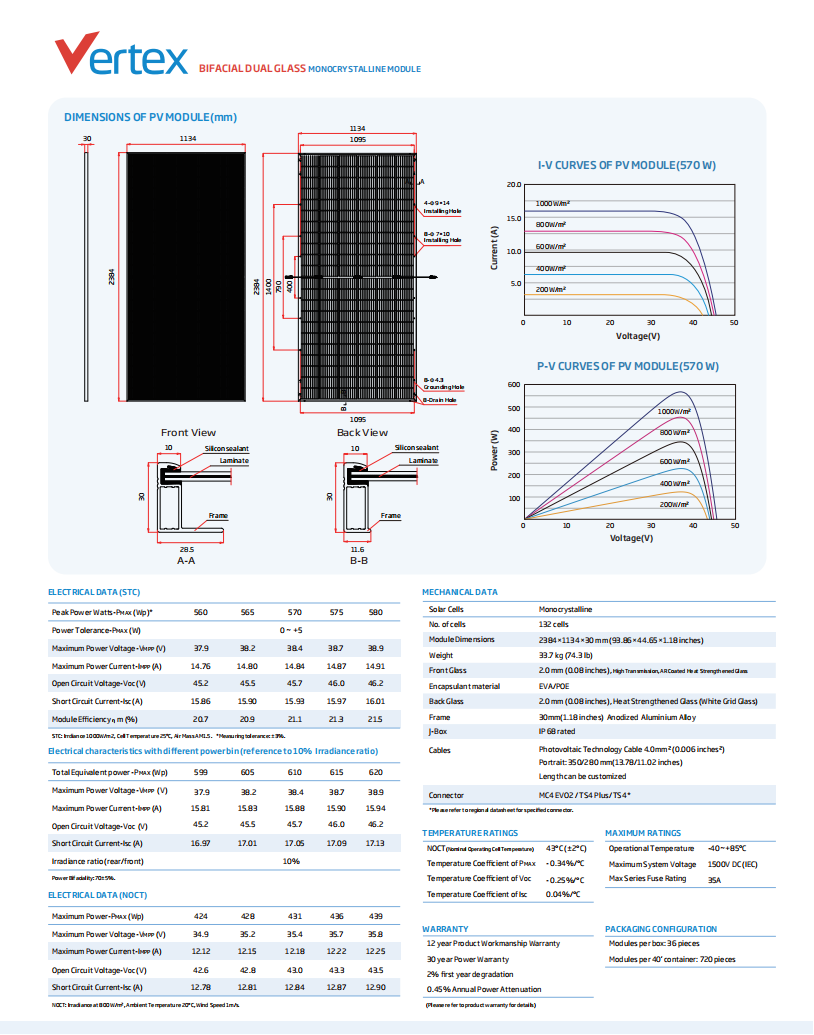

Key specifications (580 W)

Model	Trina Vertex TSM-DEG19RC.20
Power range	560-580 W
Rated maximum power	580 W
Power tolerance	0 ~ +5 W
Module efficiency	21.5%
Maximum power voltage (Vmp)	38.9 V
Maximum power current (Imp)	14.91 A
Open circuit voltage (Voc)	46.2 V
Short circuit current (Isc)	16.01 A
Cells	132 monocrystalline
Dimensions	2384 x 1134 x 30 mm
Weight	33.7 kg
Glass	2.0 mm AR-coated front / 2.0 mm heat-strengthened back
Frame	30 mm anodized aluminium alloy
Junction box	IP68
Connector	MC4 EVO2 / TS4
Maximum system voltage	1500 V DC
Operating temperature	-40 to +85 C
NOCT	43 +/- 2 C
Pmax temperature coefficient	-0.34%/C

Typical applications

Commercial and industrial rooftops
Ground-mount plants and carports
Agri-PV and other bifacial installations
Projects needing a proven, lower-wattage dual-glass module

Supply, MOQ and delivery

Modules are supplied factory-direct from our Shanghai warehouse. Minimum order quantity, container loading plan and lead time are confirmed per order based on destination port and required volume, and mixed-wattage containers can be arranged on request. Each shipment includes the datasheet, IEC certificates and packing list.

Certifications

IEC 61215, IEC 61730; ISO 9001:2015, ISO 14001:2015, ISO 45001:2018.

FAQ

Which wattages are available?
The TSM-DEG19RC.20 platform is offered from 560 W to 580 W in 5 W steps. This page describes the 580 W bin; other bins share the same dimensions.

Is it bifacial?
Yes. It uses dual-glass construction and generates additional power from the rear side.

Can you supply mixed wattage containers?
Yes, subject to stock. Send your wattage mix and destination port and we will confirm.

Request a quote for the Trina 560-580W module or browse the Trina solar panel range.
